Kapton® Polyimide Film -
a unique solution

A highly a versatile material renowned for its superior thermal, mechanical, chemical, and electrical properties, Kapton® has become the material of choice for many demanding applications that require electrical insulation, power generation or energy distribution.

As the UK’s official distributor for DuPont’s Kapton® portfolio, Lohmann are able to supply the full Kapton® range which includes as standard Kapton® HN as well as FN, EN, MT and MT+.

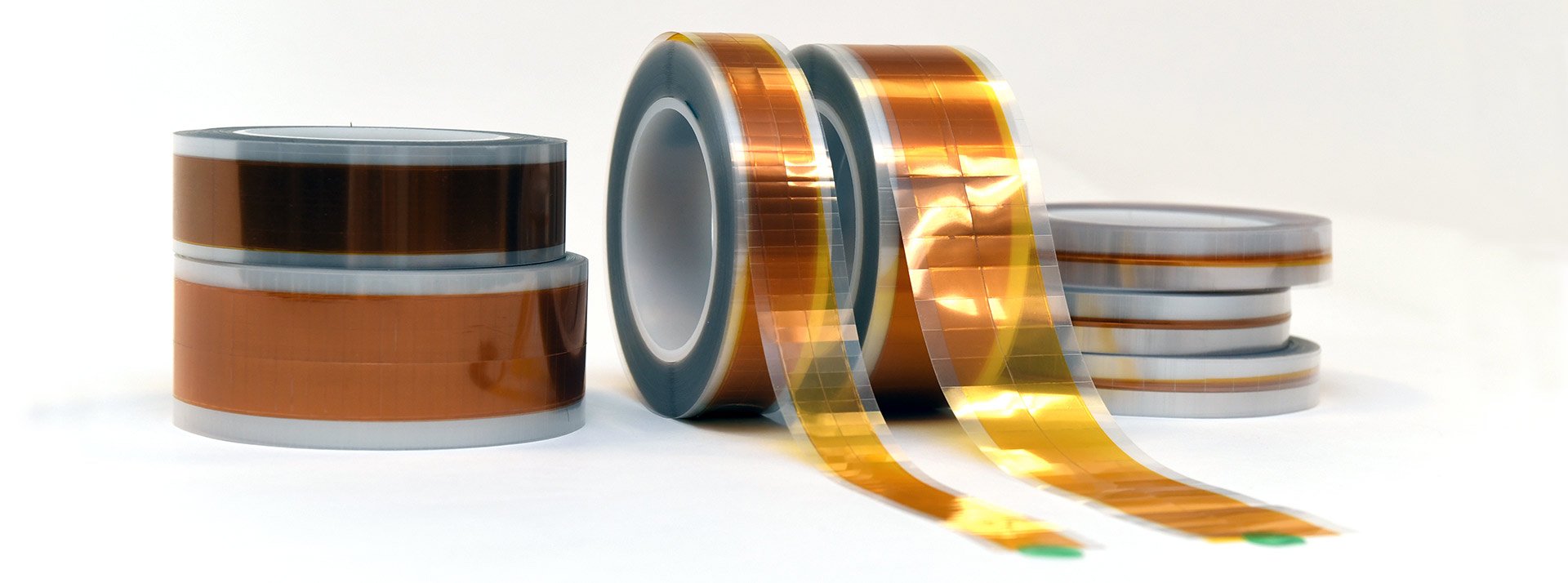

Kapton-tape-rolls-on-a-table

Kapton® has uses in many applications including:

Masking for Wave Soldering I Powder Coating I Flexible Printed Circuits I PCB Stencils I Transformer Insulation I 3D Printing Masks I Circuit Isolation I Loudspeakers I Wire and Harness Wrapping I Heating Elements I Etching I Shims I Automotive Diaphragms/Sensors

Kapton® HN Standard Rolls 610 mm wide

Grade

Thickness (µm)

Maximum Roll Length (m)

Yield (m2/kg)
50 HN 12.7 1525 56.0
100 HN 25.4 1525 28.0
200 HN 50.8 750 14.0
300 HN 76.2 500 9.2
500 HN 127 305 5.5



Kapton® HN Customised Solutions

Drawing on many years of adhesive coating and converting experience, Lohmann can work with customers’ engineers and designers to provide Kapton® in application-specific or process-friendly formats. Subject to minimum order quantities, these include slit-rolls in various standard lengths, die-cut parts or, where bonding is required, laminated with one of Lohmann’s proprietary pressure-sensitive adhesive formulations.



Grade

Maximum Width (mm)

Thickness
(µm)

Available Length (m)

Yield
(m2 / Kg)
50 HN 610 12.7 5 10 20 30 50 56
100 HN 610 25.4 5 10 20 30 50 28
200 HN 610 50.8 5 10 20 30 50 14
300 HN 610 76.2 5 10 20 30 50 9.2
500 HN 610 127 5 10 20 30 50 5.5
